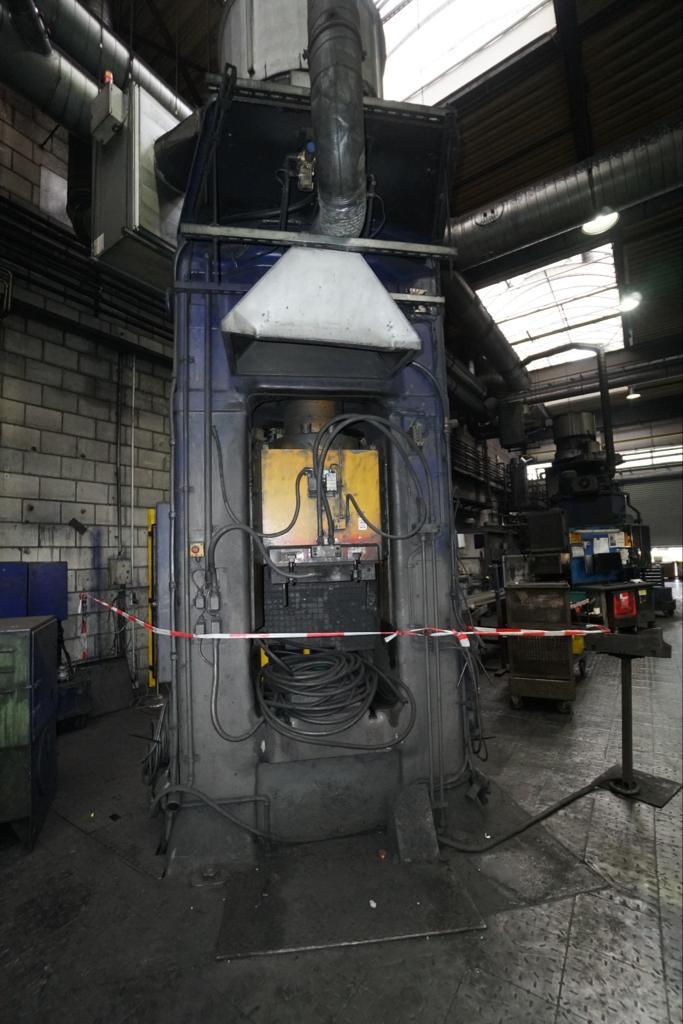

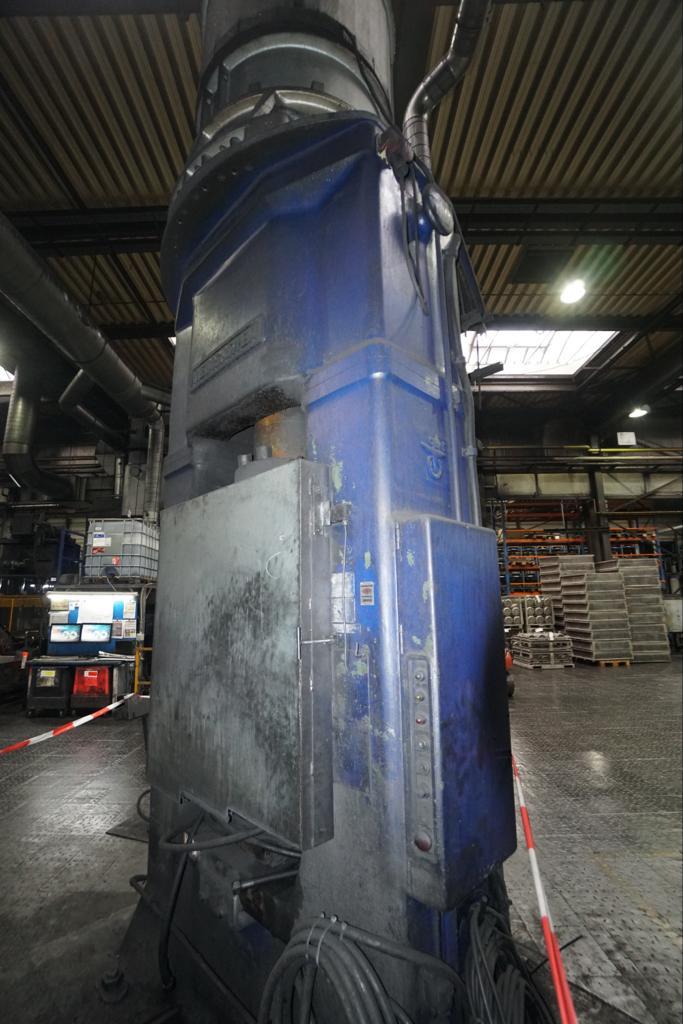

Product Name: 500/800 Ton Direct Drive Screw Press Manufacturer: WEINGARTEN Model No: PSS 225 Machine No: P0048 Technical Details:

Nominal force: 500 Ton

Charge continue admissible: 880 Ton

Hard blow force: 800 Ton

Diameter of screw: 225 mm

Smallest stroke – max stroke: 140-100 mm

Stroke to obtain the max blow force: 330 mm

Number of strokes with stroke for attaining max blow force: 35

Number of strokes with smallest stroke: 50

Distance between Table and Ram: 500-900 mm

Distance between uprights: 830 mm

Area of Table: 880X700 mm

Hole in Table: 90 mm

Area of Ram: 600X630 mm

Hole in Ram: 50X90 mm

Power Required: 22 kw

Machine height above floor: 4620 mm
