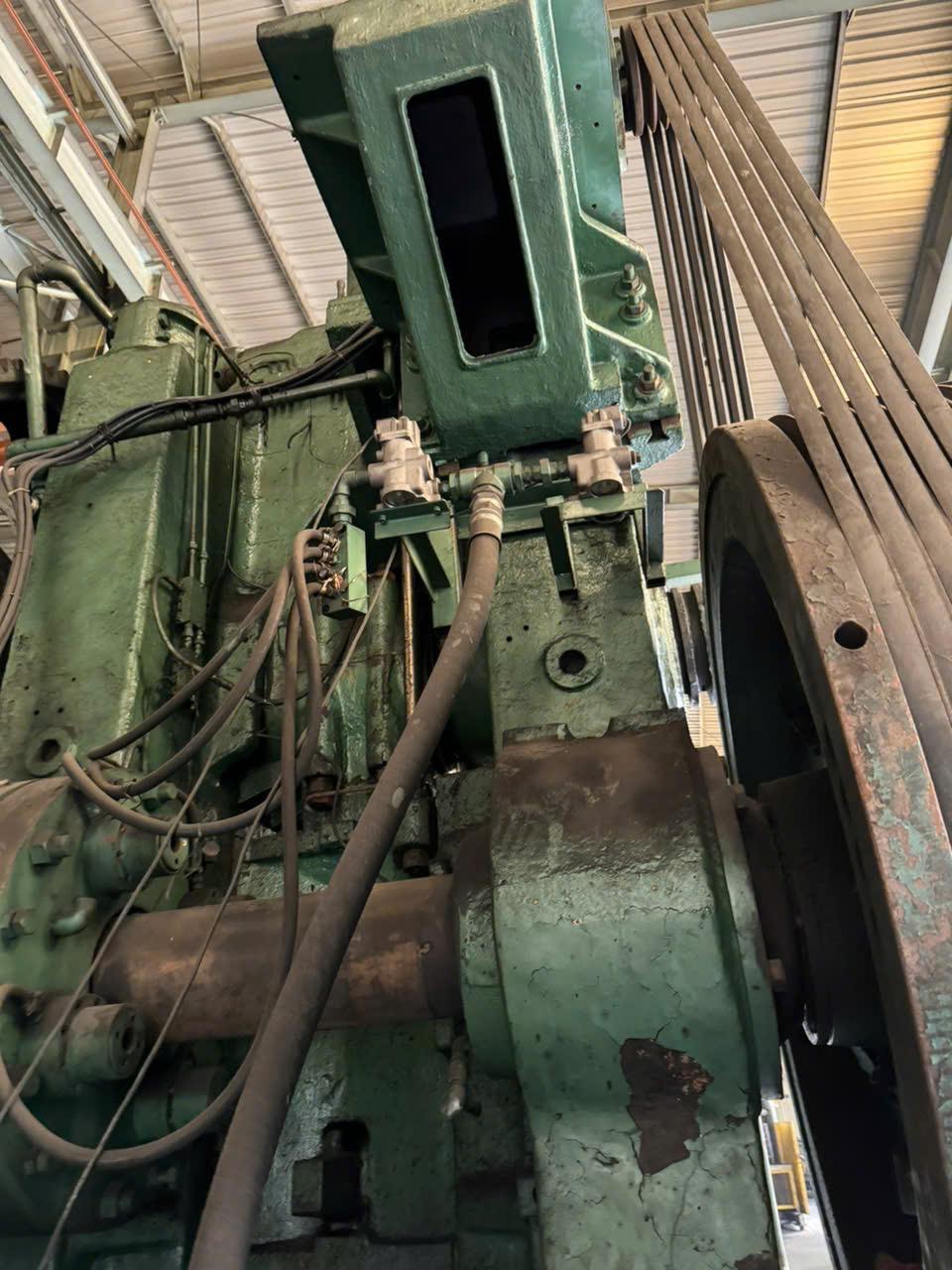

Product Name: DAIKO ISIHARA 1600 TON Manufacturer: Model No: Machine No: P00008 Technical Details:

Technical specifications:

Machine Type : Mechanical Hot Forging Press
Maker : DAIKO ISIHARA
Capacity : 1600 ton
Nominal Force: 16,000 kN
Bolster Size : 800 x 800 mm
Machine weight : Approx 92,000 kg
Drive System : Flywheel & belt-driven mechanical press
Slide Stroke : Approx 280 mm
Shut height : Approx 760 mm
Main Motor Power : Approx 75 kW
Overall Dimensions : Approx 3,225 x 3,880 x 6,196 mm
Condition : Used machine available for inspection
