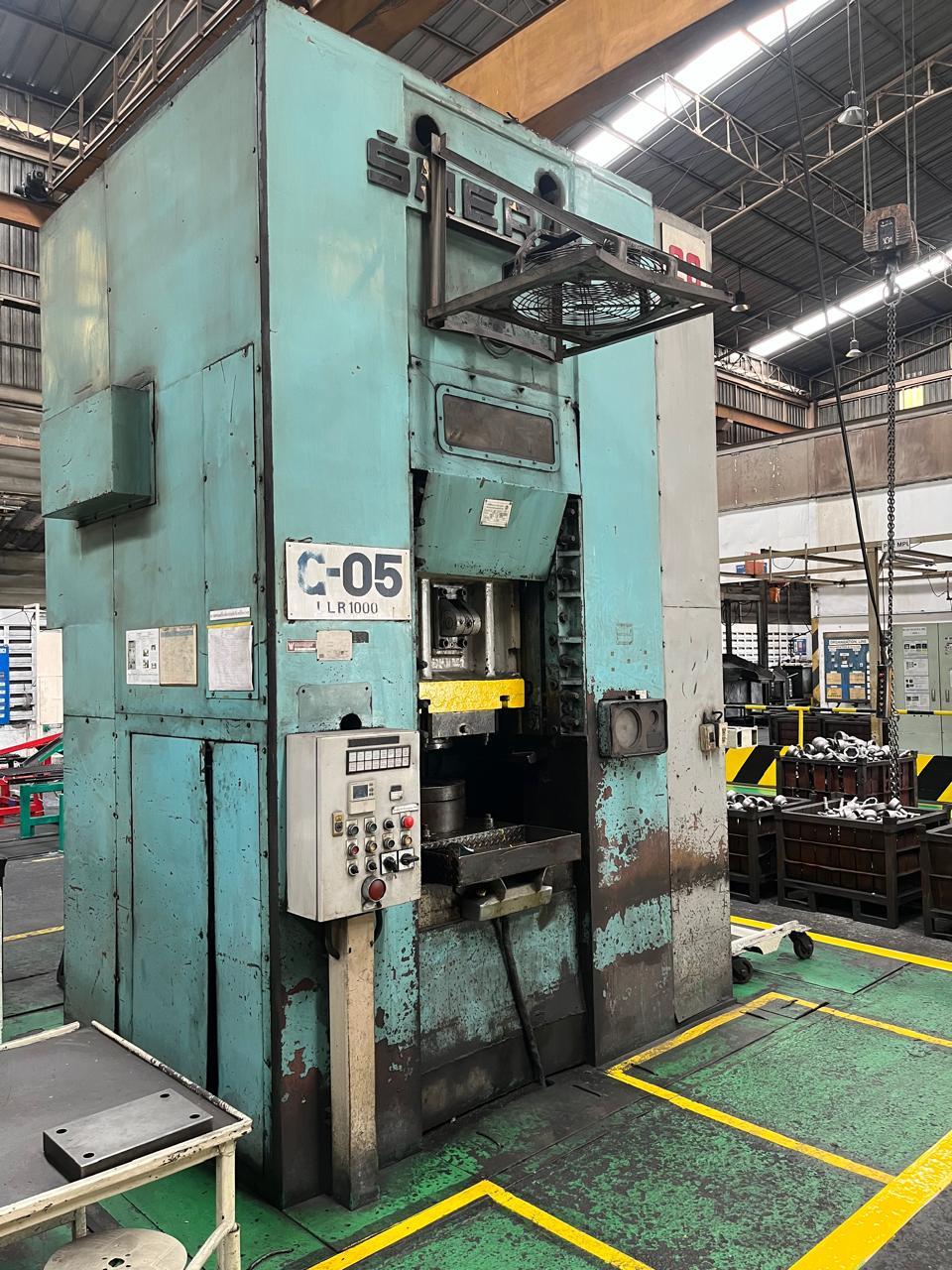

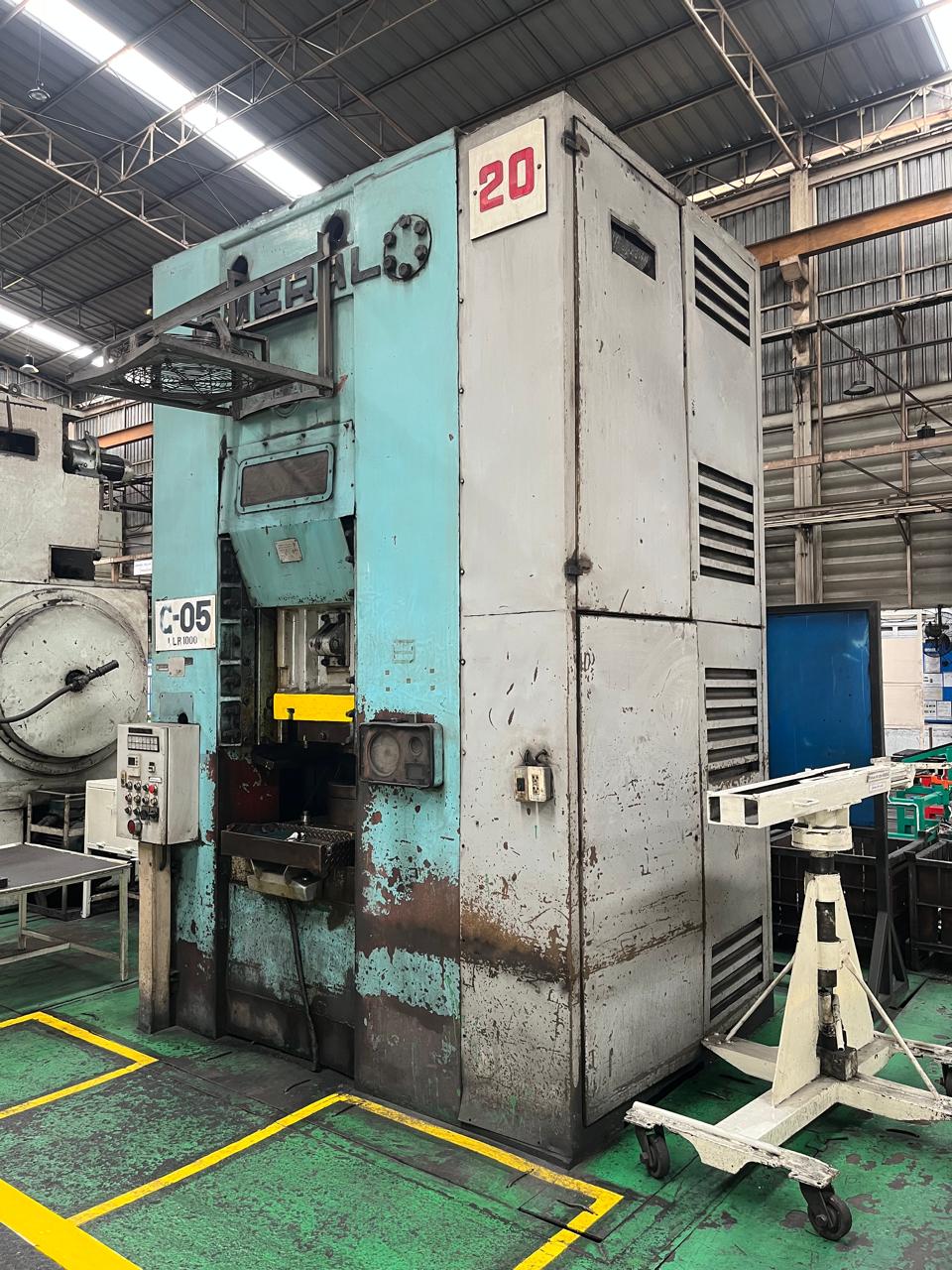

Product Name: 1000T Smeral Knuckle Joint Coining Press Manufacturer: Czech Republic Model No: LLR 1000 Machine No: P00014 Technical Details:

Technical Specifications

Rated forming force : 1000 tons
Effective stroke at nominal force : 3 mm
Ram stroke : 140 mm
Ram adjustment : 15 mm
Shut height : 630 mm
Width between uprights under guide ways : 900 mm
Table working area : 900x1000 mm
Ram working area : 710x650 mm
Number of ram strokes during continuous run : 36/1 min
Number of useful strokes : 20/1 min
Upper ejector-ejecting force : 100 kN
Upper ejector-stroke : 30 mm
Lower ejector-ejecting force : 200 kN
Lower ejector-stroke : 60 mm
Electric motor output : 37 kW
Dimensions of the press (W x L x H) : 2840 x 2380 x 4114 mm
Height above floor : 3815 mm
Press weight : 37 tons
